MATERIAL:Mild Carbon steel & Stainless Steel ANSI 304/316

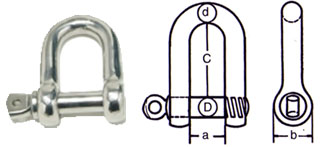

SWL	D	d	a	c	b	Weight
						per 100 pce
kg	mm	mm	mm	mm	mm	kg
80	5	5	10	19	11	1.9
100	6	6	13	25	14	3.4
200	8	8	16	32	18	7
320	10	10	19	38	20	13
520	12	12	25	51	26	24
800	16	16	32	64	33	50
1100	20	20	38	76	40	80
1500	22	22	44	89	50	130
2100	25	25	51	100	57	200
3000	28	28	57	115	68	300
3500	32	32	64	127	73	430
5000	38	38	76	152	85	675
7000	45	45	90	180	96	1250
8000	50	50	102	200	108	1750
