| * S.L.L OR S.W.L AND SIZE-EMBOSSED OR STAMPED ON THE BODY |
| * PROOFLOAD-2.2 TIMES OF W.L.L(S.W.L) |
| * ULTIMATE STRENGTH-6 TIMES OF W.L.L(S.W.L) |
| * DROP FORGED HI- CARBON STEEL BODY WITH ALLOY PIN |
| * PROOF TEST CERTIFICATE IN ACCORDANCE WITH SPECIFICATION CAN BE FURNISHED |
|
| * STAINESS STEEL(SUS-304 OR 316)SHACKLE FOR THESE SIZES AS LISTED BELOW ALSO AVAILABLE |
| * TRAWLING SHACKLE(WITH SQUARE HEAD PIN)AVAILABLE FOR ALL SIZES |
| SCREW PIN |
|
ROUND PIN |
|
|
|
|
|
|
|
|
|
|

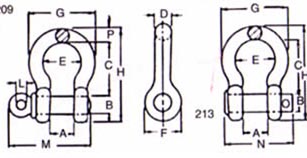

| G-209 S-209 |
|
G-213 S-213 |
|
|
|
|
|
|
|
|
|
|
| Meet Federal Specification RR-C-271D Type IVA.Grade A, Class 1 or Class 2. |
|
|
|
|
|
|
|
|
|
Nominal |
Working |
Dimensions |
Weight Each |
|
Size |
Load |
(1bs) |
|
(in.) |
Limit |
¡¡ |
|
¡¡ |
(tons) |
A |
B |
C |
D |
E |
F |
G |
H |
L |
M |
N |
P |
G-209 |
G-213 |
|
¡¡ |
¡¡ |
S-209 |
S-213 |
|
3/16 |
1/3 |
0.38 |
0.25 |
0.19 |
0.19 |
0.6 |
0.56 |
0.98 |
1.47 |
0.16 |
1.12 |
-- |
0.19 |
0.05 |
-- |
|
1/4 |
1/2 |
0.47 |
0.31 |
0.25 |
0.25 |
0.78 |
0.61 |
1.28 |
1.84 |
0.19 |
1.38 |
1.34 |
0.25 |
0.12 |
0.13 |
|
5/16 |
3/4 |
0.53 |
0.38 |
0.31 |
0.31 |
0.84 |
0.75 |
1.47 |
2.09 |
0.22 |
1.66 |
1.59 |
0.31 |
0.19 |
0.17 |
|
3/8 |
1 |
0.66 |
0.44 |
0.38 |
0.38 |
1.03 |
0.91 |
1.78 |
2.49 |
0.25 |
2.03 |
1.86 |
0.38 |
0.31 |
0.25 |
|
7/16 |
1-1/2 |
0.75 |
0.5 |
0.44 |
0.44 |
1.16 |
1.06 |
2.03 |
2.91 |
0.31 |
2.38 |
2.13 |
0.44 |
0.38 |
0.38 |
|
1/2 |
2 |
0.81 |
0.63 |
0.5 |
0.5 |
1.31 |
1.19 |
2.31 |
3.28 |
0.38 |
2.69 |
2.38 |
0.5 |
0.63 |
0.7 |
|
5/8 |
3-1/4 |
1.06 |
0.75 |
0.63 |
0.63 |
1.69 |
1.5 |
2.94 |
4.19 |
0.44 |
3.34 |
2.91 |
0.69 |
1.38 |
1.5 |
|
3/4 |
4-3/4 |
1.25 |
0.88 |
0.75 |
0.75 |
2 |
1.81 |
3.5 |
4.97 |
0.5 |
3.97 |
3.44 |
0.81 |
2.25 |
2.32 |
|
7/8 |
6-1/2 |
1.44 |
1 |
0.88 |
0.88 |
2.28 |
2.09 |
4.03 |
5.83 |
0.5 |
4.5 |
3.81 |
0.97 |
3.38 |
3.4 |
|
1 |
8-1/2 |
1.69 |
1.13 |
1 |
1 |
2.69 |
2.38 |
4.69 |
6.56 |
0.56 |
5.07 |
4.53 |
1.06 |
5.32 |
5 |
|
1-1/8 |
9-1/2 |
1.81 |
1.25 |
1.16 |
1.16 |
2.91 |
2.69 |
5.16 |
7.47 |
0.63 |
5.59 |
5.13 |
1.25 |
6.81 |
6.97 |
|
1-1/4 |
12 |
2.03 |
1.38 |
1.29 |
1.29 |
3.25 |
3 |
5.75 |
8.25 |
0.69 |
6.16 |
5.5 |
1.38 |
9.5 |
9.75 |
|
1-3/8 |
13-1/2 |
2.25 |
1.5 |
1.42 |
1.42 |
3.63 |
3.31 |
6.38 |
9.16 |
0.75 |
6.84 |
6.13 |
1.5 |
13.25 |
13.25 |
|
1-1/2 |
17 |
2.38 |
1.63 |
1.54 |
1.54 |
3.88 |
3.63 |
6.88 |
10 |
0.81 |
7.35 |
6.5 |
1.62 |
17.2 |
17.25 |
|
1-3/4 |
25 |
2.88 |
2 |
1.84 |
1.84 |
5 |
4.19 |
8.86 |
12.3 |
1 |
9.08 |
7.75 |
2.25 |
30.38 |
29.46 |
|
2 |
35 |
3.25 |
2.55 |
2.08 |
2.08 |
5.75 |
4.81 |
9.97 |
13.7 |
1.22 |
10.3 |
8.75 |
2.4 |
45 |
45.75 |
|
2-1/2 |
55 |
4.13 |
2.75 |
2.71 |
2.71 |
7.25 |
5.69 |
12.9 |
17.8 |
1.38 |
13 |
-- |
3.13 |
85.75 |
-- |
