· Forged Steel-Quenched & Tempered.& Stainless Steel ANSI 304/316
· Working Load Limits shown are for In-line pull.
· Recommended for straight line pull.
· Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
· All Bolts threaded UNC.

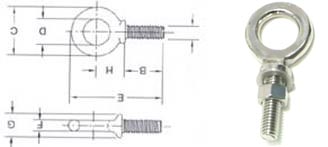

Size	Working Load Limit(lbs.)	Weight per 100 (lbs)	Dimensions (In.)
			A** Thread	B	C	D	E	F	G
1/4X1	650	5	1/4-20	1.02	1.13	0.75	2.29	0.19	0.53
5/16X11/8	1200	9	5/16-18	1.15	1.38	0.88	2.74	0.25	0.59
3/8X11/4	1550	15	3/8-16	1.27	1.62	1	3.07	0.31	0.69
1/2X11/2	2600	28	1/2-13	1.53	1.95	1.19	3.7	0.38	0.91
5/8X13/4	5200	55	5/8-11	1.79	2.38	1.38	4.45	0.5	1.13
3/4X2	7200	96	3/4-10	2.05	2.76	1.5	5.07	0.63	1.38
7/8X21/4	10600	154	7/8-9	2.31	3.25	1.75	5.87	0.75	0.156
1X21/2	13300	238	1-8	2.57	3.76	2	6.66	0.88	1.81
11/4X3	21000	399	1-1/4-7	3.09	4.5	2.5	7.95	1	2.28
11/2X31/2	24000	720	1-1/2-6	3.6	5.5	3	9.49	1.25	2.75
