Material: Carbon Steel C1045
Finishing: Powder Coated or Electronic Galvanized
Heat Treated: Quenched and Tempered
Minimum Breaking Loading: 3.5 Times to WLL
Packing: Carton then Steel Pallet

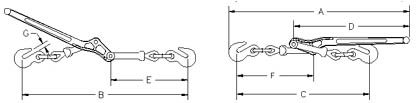

Min-Max Chain	Working Load	Proof	Ultimate Load (lbs.)	Weight Each	Handle Length	Tak	Dimensions
Size	Limit	Load		(lbs.)	(in.)	Up	(in.)
(in.)	(lbs.)	(lbs.)				(in.)	A	B	C	D	E	F	G
1/4-5/16	2200	4400	7800	3.52	11.42	3.75	18.5	17.3	14.17	11.42	8.27	8.07	0.35
5/16-3/8	5400	10800	19000	7.02	16	4.5	24.13	22.13	17.88	16	10.38	10.38	0.5
3/8-1/2	9200	18400	33000	12.47	18.69	4.5	28.75	25.75	21.25	18.69	12.31	12.38	0.63
1/2-5/8	13000	26000	46000	19.68	21	4.75	31.25	29.75	25	21	14.63	13.75	0.72
