MATERIAL:Mild Carbon steel & Stainless Steel ANSI 304/316

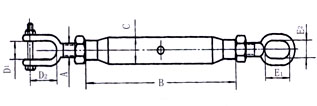

Size A	B	C	D1	D2	E1	E2	Proof  Test
mm  in							Tons
M6   1/4	102	12	10	19	16	8	0.2
M8  5/16	127	14	10	19	18	8	0.35
M10  3/8	152	17	12	21	22	10	0.5
M12  1/2	229	21.25	15	32.5	30	14	1
M16  5/8	229	26.75	18	39	40	18	1.5
M20  3/4	229	26.75	20	50	50	20	2.25
M22  7/8	305	33.5	25	57.5	55	24	3.25
M24    1	356	42.25	30	63	55	24	4.25
M28 1-1/8	356	42.25	32	70	60	27	5.5
M32 1-1/4	381	48	34	74	65	30	7.5
M36 1-3/8	381	48	36	78	65	30	8.5
M39 1-1/2	406	60	38	83	65	35	10.25
